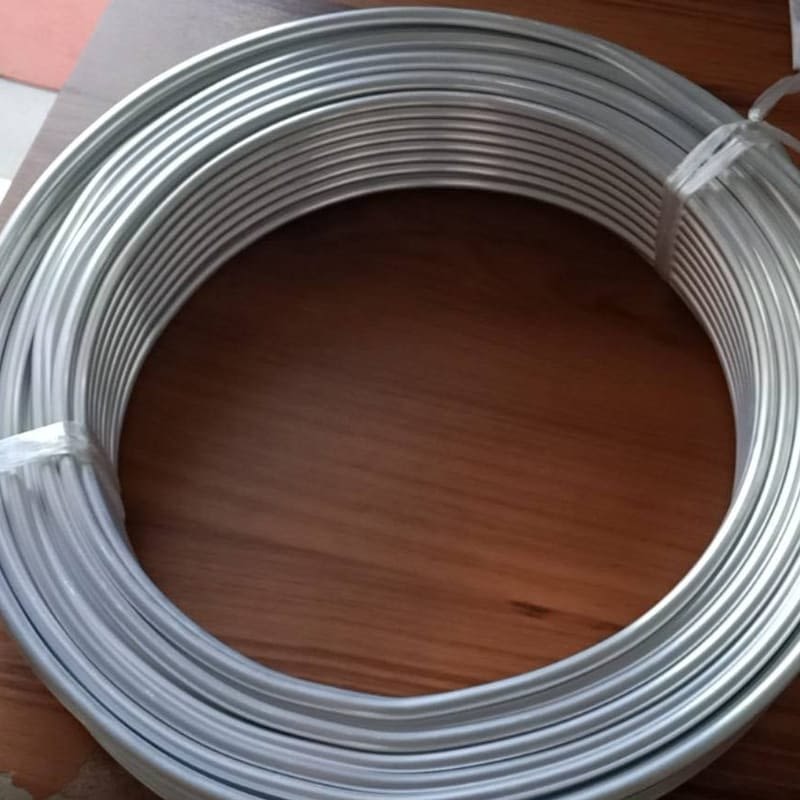

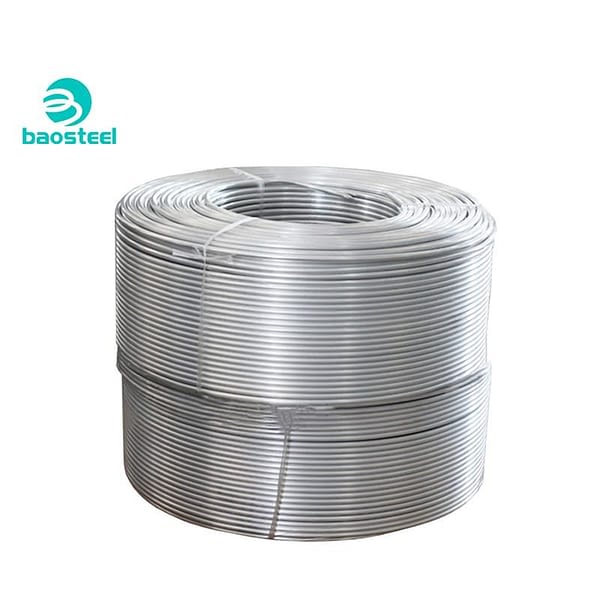

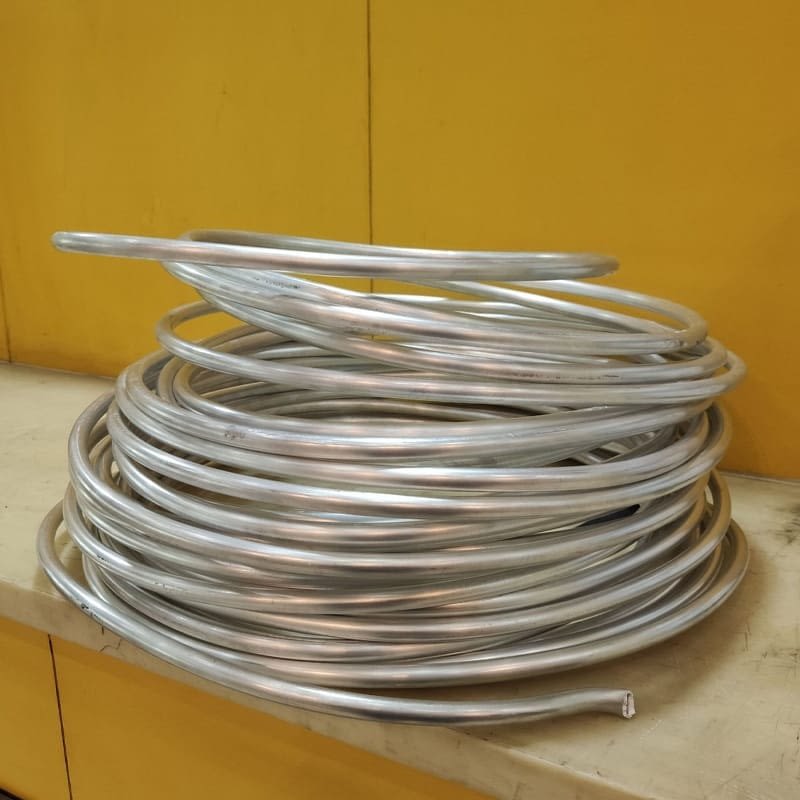

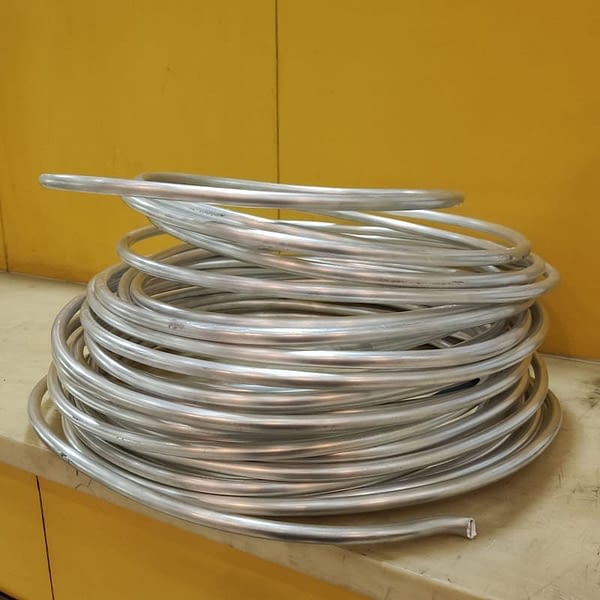

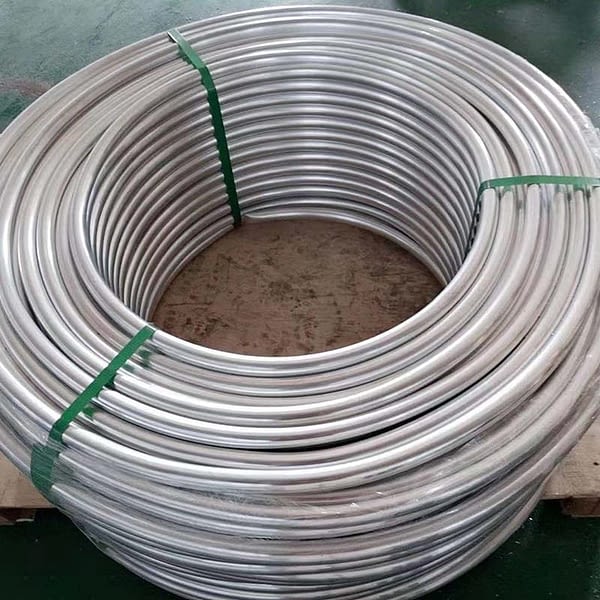

1070 Aluminum Coil Tube
Material alloy grade:1050,1060,1070,1100,3003,6061
Temper: O and H14
length: 10ft,20ft,25ft,20ft,50ft etc
max working pressure:4.0Mpa
Processing：Hot extruded
PRODUCT DESCRIPTION
Product introductionProducts Details
We are a manufacturer of Aluminum Coil Tubing Fuel Line 1/4,3/8,1/2,5/8 and 3/4
Widely used in the automotive and air conditioning industry as important HVAC parts.
Features:
Material alloy grade:1050,1060,1070,1100,3003,6061,3103
Temper: O and H14
Thin wall aluminum tubing
length: 10ft,20ft,25ft,20ft,50ft etc
max working pressure:4.0Mpa
Technical parameter:
Processing：Hot extruded
Pipe Tensible strength: 68-80Mpa
Tube Elongation: 30-40%
Bursting pressure > 1800 PSI
Bending at 1800 by 25mm bending radius: no visible crack.
Surface quality: smooth, no crack
Filling with Ni gas (＞1.00Mpa), keep the pressure for at least 30 minutes,
Checking the pressure gauge with decreasing or not. No leakage is accepted.
Keep pressure in store about 24 hours before delivery
Bending testing:
Bending at 1800 by a 25mm bending radius, there is no visible crack.
Flattening testing:
Pressing tube to be flat (inner wall distance same as wall thickness), no visible crack to be found.
Cleaning test:
Clean the inner wall surface, without any pollution found, total impurity content remained 5~60mg/ m2
Technical data
Chemical Composition:
Various alloy grade aluminum tubing for sale
| 1050 Aluminium Chemical Composition | |||||||||
| Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
| 99.5~100 | 0~0.25 | 0~0.05 | 0~0.05 | 0~0.05 | 0~0.05 | 0~0.03 | 0~0.05 | 0~0.40 | 0~0.03 |
| 1060 Aluminium Chemical Composition | |||||||||
| Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
| 99.6-100 | 0~0.25 | 0~0.05 | 0~0.03 | 0~0.05 | 0~0.03 | 0~0.03 | / | 0~0.35 | |
| 1070 Aluminium Chemical Composition | |||||||||
| Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
| 99.7~100 | 0~0.2 | 0~0.04 | 0~0.03 | 0~0.04 | 0~0.03 | 0~0.03 | 0~0.05 | 0~0.25 | |
Processing technology
1070 alloy aluminum tube is called a hot extruded aluminum tube.
Raw material 1070 aluminum wire rod size 9.5mm, feeding in the hot extruded machinery.
Extrusion model and temperature higher 570 °C aluminum half nearly melting
Aluminum tubing comes through a cold pure water tank to lower surface temperature.
Application:
Refrigerant tube in the HVAC industry
Air conditioner pipe for mini split line set
Automotive repair as fuel lines
Evaporator and condenser pipes
Gas stove connecting pipes
warranty
As one of the top aluminum tube suppliers, we have strict production management and quality control
NO leakage before delivery
Rohs certification environmentally
5 years of quality promise as HVAC parts.

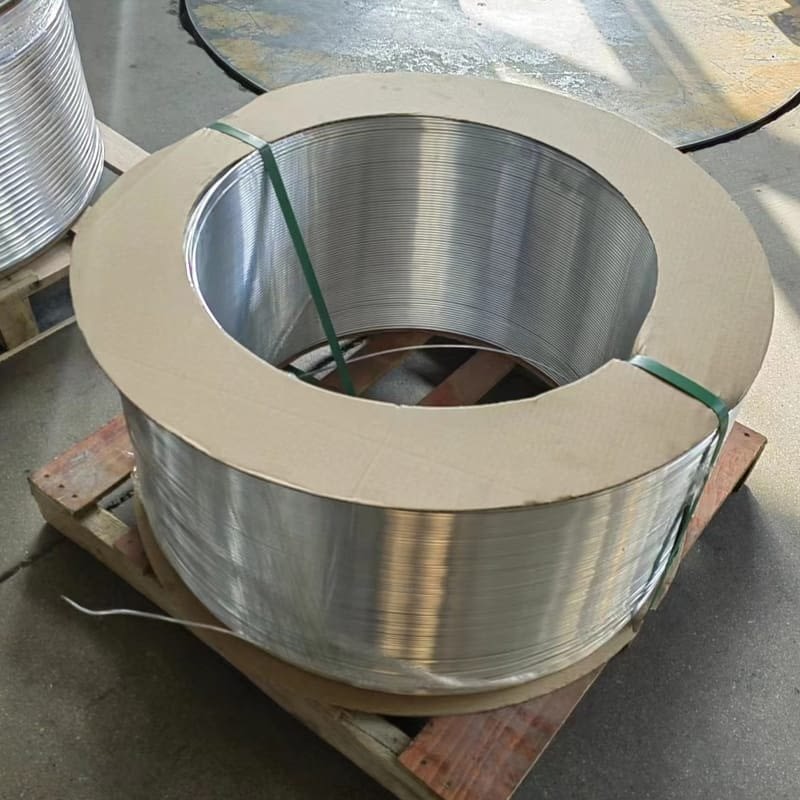

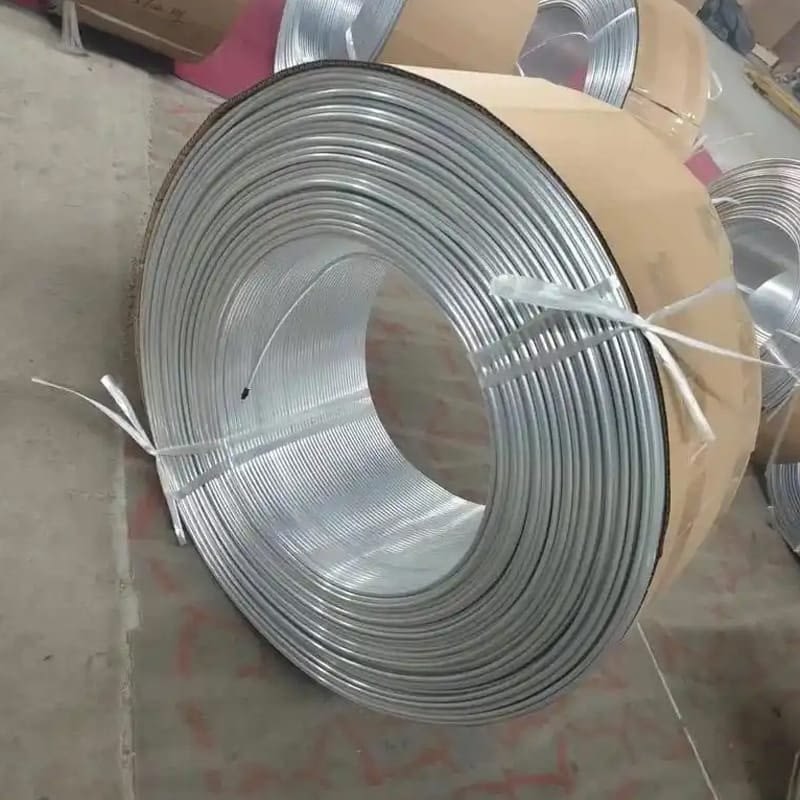

Packing and shipping
Our products are exported to more than 60 countries and regions including Europe, the Middle East, Southeast Asia, Australia, etc. We promise”complete specifications, prompt delivery, high quality, competitive price, “The unwavering supports you provide, along with the increasing requirements you put contributes to more varied high-quality products with more competitive prices we offer.
It has scale advantages, resource advantages, integration advantages, technology research and development advantages, capital operation advantages, and has a complete pre-sales, sales and after-sales service system. We continue to innovate and seek transformation, and are willing to provide better services to customers around the world.
Application field
BAOSTEEL NEW MATERIALS GROUP CO.,LIMITED is a modern integrated steel service enterprise specializing in steel products processing, sales and technical services.The products are widely used in water conservancy projects, military equipment, construction industry, aerospace, automobiles, home appliances and other fields.
ADVANTAGE
ATTRACTNVEAND REASONABLE PRICE
We have our own manufacture, which means we cangive you a very competitive price in the industry
SPECIALZED MANUFAGTURERS
Specializes in manufacturing and selling thehigh-quality stainless steel, choose us we can offer you the best stainless steel products
15 YEARS' EXPERIENCE
With years' experience in the line, we are readyto provide with best service and high-qualityproducts in timely delivery
PROFESSIONAL TEAM
Our professional engineering and technicalteam has extensive knowledge in the stain- less steel manufacturing industry
FAQ
Our Service Commitment
A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.
A:Of course, we welcome customers from all over the world to visit our factory.
Provide the assembly assembly drawing of the lifting platform for free
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely.
A:Within 15-45 days after we confirm you requirement.
A: Exported to more than 80 countries mainly from America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, United Arab Emirates and etc.
A: We ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
A：Yes absolutely we accept.
